| Type of refrigerant |
R134a or HFO1234yf |
| Service procedure |
Fully automatic or manual |
| Voltage |
220-240V 50/60 Hz |
| Scale resolution |
10 g |
| Oil scale resolution |
5 g |
| Working temperature range |
11/49°C |
| Filter system |
1 filter for humidity (112 g) |
| Vacuum pump |
100 litre/min capacity, 0.1 mbar vacuum level |
| Compressor |
1/3 HP |
| Recovery speed |
300 g/min in liquid phase |
| Refrigerant tank |
22 litres, refillable (12 litres for HFO) |
| Hoses |
3 metres |
| Overall size |
55 x 60 x 105 cm |
| Weight |
80 kg |
| Thermal printer |
Standard equipment |

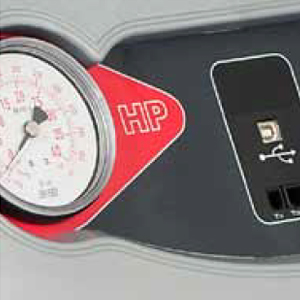

| Pressure gauges |
Class 1 |
| Bottle heater | Standard equipment |
 |

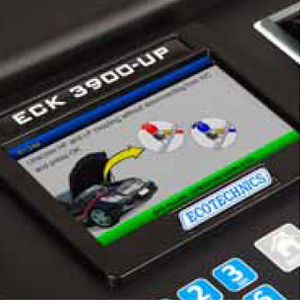

5” Color Display with icon messaging for easy use. |
 |
Automatic HP-LP taps with possibility to select from which port of the a/c system to recover /charge |
 |
Nitro Integrated Nitrogen and Nitrogen+Hydrogen leak detection with a connection for external tank |
 |
Hybrid (patent pending) Integrated function for service hoses flushing for use with vehicles equipped with electric compressors |
 |
Hermetic containers, for new oil and dye. |
 |
 |
 |
| Gas Identifier controlled by the machine. |

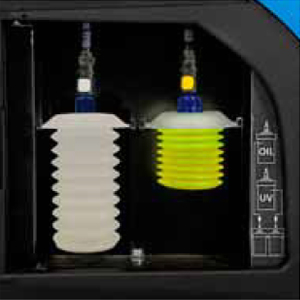

Hermetic & refillable containers, for new oils, and for dye (programmable). |
Diag (only for R134a) Dynamic diagnosis module. |
