| Type of refrigerant |
R134a and HFO1234yf |
| Service procedure |
Fully automatic or manual |
| Voltage |
220-240V - 50/60 Hz |
| Scale resolution |
10 g |
| Oil scale resolution |
5 g |
| Working temperature range |
11/49°C |
| Filter system |
2 filters for humidity (112 g) |
| Vacuum pump |
100 litre/min capacity, 0.1 mbar vacuum level |
| Compressor |
Hermetically sealed, 2x12 cc, high pressure |
| Recovery speed |
300 g/min in liquid phase |
| Refrigerant tank |
2x12 litres, refillable |
| Hoses |
2 pairs, each 3 metres |
| Overall size |
67 x 62 x 107 cm |
| Weight |
110 kg |
| Thermal printer |
Standard equipment |
| Pressure gauges |
Class 1 |
| Display |
Colour graphic, touch screen |
| Bottle temperature sensor |
Integrated |

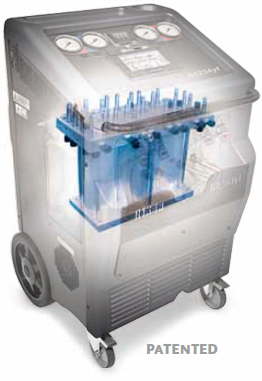

| Bottle heater | Automatic |
 |
 |
Patented |
|
| Nitro Integrated Nitrogen and Nitrogen+Hydrogen leak detection with a connection for external tank (only TWIN-PRO) | Hybrid function, with service hoses flushing, for use with vehicles equipped with electric compressors | ||
 |
 |
||
| 4 separate lines for oil and dye with hermetic containers | “Puff free” couplers to save refrigerant with every disconnection (only TWIN-PRO) |
 |
 |
| Gas Identifier controlled by the machine |
4 separate lines for oil and dye with hermetic and refillable containers (programmable) |
